ELFO 15T NEW
.jpg)
.jpg){kind=link}

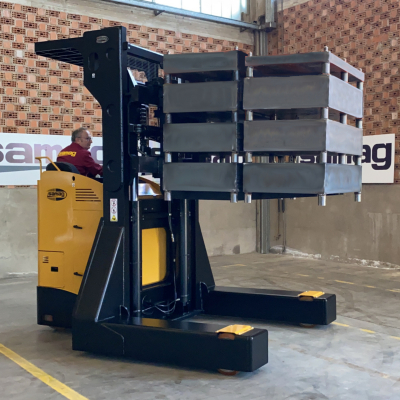

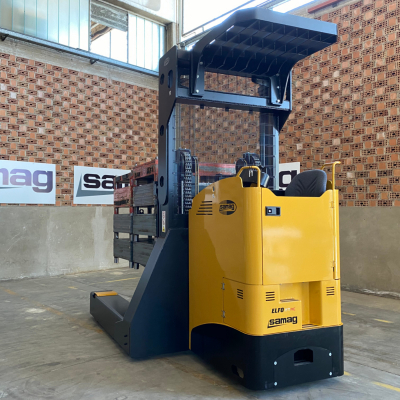

Fork lift truck WITH TOTAL VISIBILITY with seated operator
IDEAL FOR HANDLING HEAVY LOADS UP TO 15.000 KGS.
Model made to measure for the customer to handle big capacities, this forklift truck is capable of lifting up to 14,000 kg at 2 meters lift height.
New Tech – LATEST generation AC power and Can Bus technology.
Load centre 800 mm.
Raised cabin from the ground but easily accessible thanks to 3 steps.
Special mast with Protection roof.

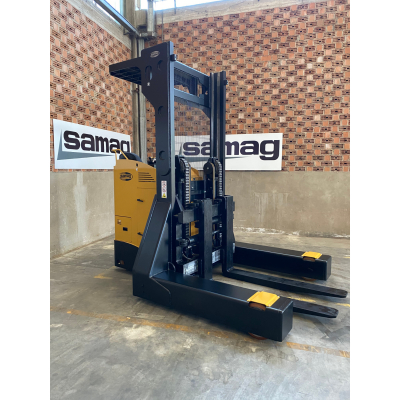

Fork positioner and Side shift on FEM carrier plate and special FEM forks.
Two lift cylinders gives better visibility to the operator.
Two drive wheels at 48 Volts.
Hydraulic controls managed electronically and proportionally.

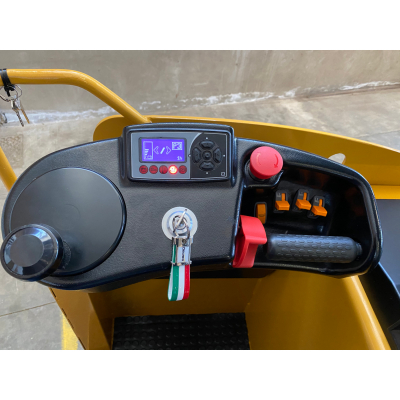

Adjustable dashboard controls.
Lifting components independent from the driving parts to ensure the 4 contact points with the ground.
Graphic Display, with automatic self-diagnostic system.
Easy Access to components to make maintenance operations easier.
✔ LOAD CAPACITY UP TO 15.000 KG
✔ CAPACITIES AND SPECIAL DIMENSIONS UPON REQUEST
- some optionals

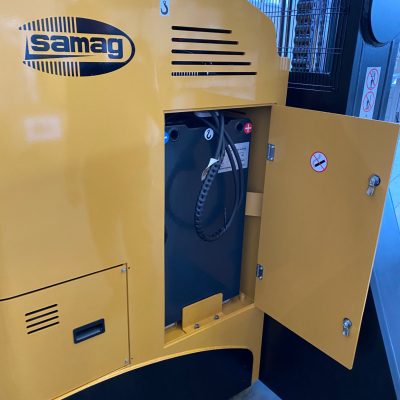

- Lithium battery
- Scale/Printer
- Use in cold store
| Type | Stacker trucks | Class | Ride-on stacker trucks for normal-intensive use and heavy loads |
|---|---|---|---|
| Load capacity (Kg) | 15000 | Lifting capacity (mm) | 2000 |
