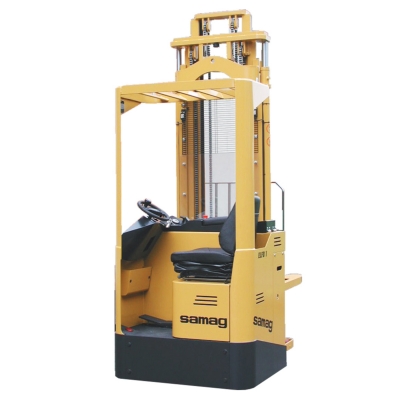

ELFO 1
Stacker truck with seated operator for narrow and high environments
Elfo 1 is a stacker truck intended for handling of pallets up to 6.500 mm in narrow corridors.
During horizontal movements, thanks to the transversal driving position, the operator has the best visibility conditions to make the most of the travelling speed.
STRENGTHS:
- Masts with light design for total visibility
- AC alternating current traction motor ensuring greater power and maximum efficiency with less maintenance

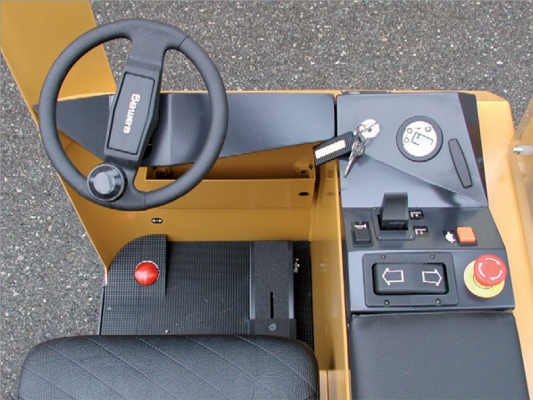

- All operating controls placed on the dashboard
- Electric steering system
- Fork lifting and lowering with proportional controls

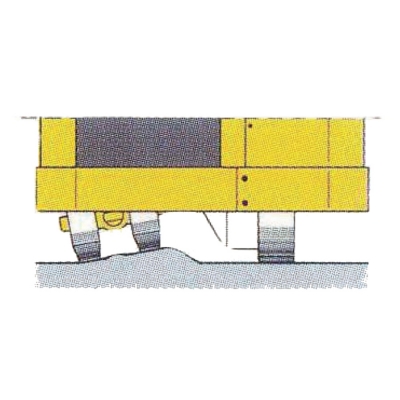

- Oscillating twinned pivoting wheels
- Adjustable accelerator pedal
- Button for slow functions
Optionals:

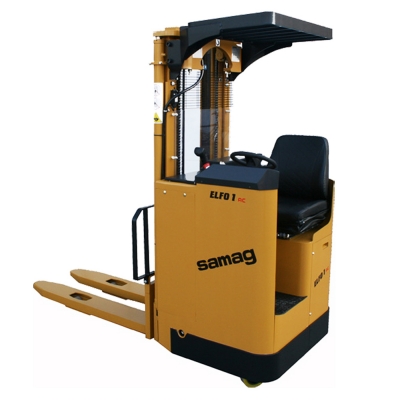

- Narrow version (b1 = 880 mm)
- Joystick
✔ LOAD CAPACITY UP TO 1.300 KG
✔ SPECIAL DIMENSIONS UPON REQUEST
✔ GREATER LOAD CAPACITIES UPON REQUEST
- some optionals
- Metallic/galvanised version
- Lithium battery
- Scale/Printer
- Use in cold store
Type | Stacker trucks | Class | Ride-on stacker trucks for normal-intensive use and heavy loads |
---|---|---|---|
Load capacity (Kg) | 1300 | Lifting capacity (mm) | 6500 |
1.1 | Manufacturer | SAMAG | |||
---|---|---|---|---|---|
Caratteristiche | 1.2 | Manufacturer's type designation | ELFO 1 | ||
1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Electric | |||
1.4 | Operator type: hand, pedestrian, standing, seated, order-picker | Seduto | |||
1.5 | Load capacity/rated load | Q | t | 1,3 | |
1.6 | Load centre distance | C | mm | 600 | |
1.8 | Load distance, centre of drive axle to fork | x | mm | 718 | |
1.9 | Wheelbase | Y | mm | 1465 - 1483 (1) | |
Weight | 2.1 | Service weight (battery included) | Kg | 1360 (3) | |
2.2 | Axle loading, laden (front / rear) | Kg | 1093 - 1567 (3) | ||
2.3 | Axle loading, unladen (front / rear) | Kg | 990 - 370 (3) | ||
Wheels and frame | 3.1 | Tyres: solid rubber, superelastic, pneumatic, polyurethane | Vulkollan | ||
3.2 | Tyre size, front | mm | 260x85 / 150x50 | ||
3.3 | Tyre size, rear | mm | 85x70 | ||
3.5 | Wheels, number front rear (x = driven wheels) | 1x+2/4 | |||
3.6 | Tread, front | b10 | mm | 672 | |
3.7 | Tread, rear | b11 | mm | 380 | |

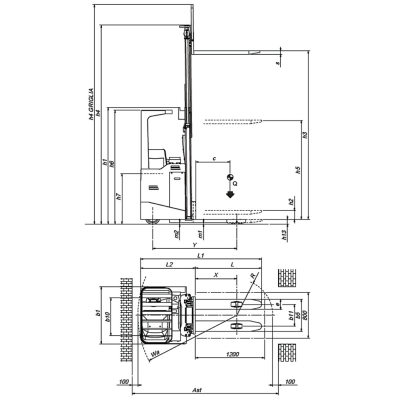

Dimensions | 4.2 | Height, mast lowered | h1 | mm | (see table) |
4.3 | Free lift | h2 | mm | (see table) | |
4.4 | Lift | h3 | mm | (see table) | |
4.5 | Height, mast extended | h4 | mm | (see table) | |
4.6 | Initial lift | h5 | mm | (see table) | |
4.7 | Height of overhead guard (cabin) | h6 | mm | 2030 | |
4.8 | Seat height / stand height | h7 | mm | 880 | |
4.15 | Height of forks from ground | h13 | mm | 85 | |
4.19 | Overall length | l1 | mm | 2111 - 2129 (1) | |
4.20 | Lenght of face of forks | l2 | mm | 961 - 979 (1) | |
4.21 | Larghezza totale | b1 | mm | 998 | |
4.22 | Fork dimensions | s/e/l | mm | 60x180x1150 | |
4.25 | External fork widths | b5 | mm | 560 | |
4.31 | Ground clearance, laden, below mast | m1 | mm | 25 | |
4.32 | Ground clearance, centre of wheelbase | m2 | mm | 30 | |
4.34 | Aisle width for pallets 800 x 1200 crossways | Ast | mm | (2406) 2547 - (2424) 2565 (1)(2) | |
4.35 | Turning radius | Wa | mm | 1721 - 1739 (1) | |
Performance | 5.1 | Travel speed (laden / unladen) | Km/h | 8 / 9 | |
5.2 | Lift speed (laden / unladen) | m/s | 0,13 / 0,26 | ||
5.3 | Lowering speed (laden / unladen) | m/s | 0,4 / 0,3 | ||
5.7 | Gradeability (laden / unladen) | % | 8 / 9 | ||
5.8 | Max. gradeability (laden / unladen) | % | 8 / 17 | ||
5.10 | Service brake | Electric | |||
Electric motor | 6.1 | Traction motor, power KB 60' | KW | 2 AC | |
6.2 | Lifting motor, performance 15% ED | KW | 2,5 | ||
Steering motor | KW | 0,3 | |||
6.3 | Battery DIN 43531/35/36 A, B, C, | yes | |||
6.4 | Tension / nominal capacity | V / Ah | 24 / 320 - (500) | ||
6.5 | Battery weight (± 5%) | Kg | 256 - (366) | ||
Other data | 8.1 | Control type | Electric | ||
8.4 | Sound level at the driver's ear according to DIN 10 053 | dB/(A) | <70 | ||
AST comprende "a" (spazio di manovra) = 200 mm AST comprende "a" (spazio di manovra) = 200 mm (1) Duplex / Triplex (2) I valori di AST tra parentesi sono calcolati senza considerare il raggi "R" (3) Valori riferiti a "DV 3000" |
OVERALL DIMENSIONS OF LIFTING GROUPS |
|||||||
---|---|---|---|---|---|---|---|
TYPE | Lift height | h3 | h2 | h5 | h1 | h4 | h4 grid |
Non telescopic | 1700 | 1620 | 1620 | 2080 | 2100 | 2510 | |
Duplex "DV" | 3000 | 2930 | 150 | 2030 | 3460 | 3820 | |
3500 | 3430 | 150 | 2280 | 3960 | 4320 | ||
4000 | 3930 | 150 | 2530 | 4460 | 4820 | ||
4300 | 4270 | 150 | 2700 | 4800 | 5160 | ||
Duplex "DVL" | 3000 | 2945 | 1480 | 2030 | 3495 | 3835 | |
3500 | 3445 | 1730 | 2280 | 3995 | 4335 | ||
4000 | 3945 | 1980 | 2530 | 4495 | 4835 | ||
Triplex "TV" | 4200 | 4155 | 1980 | 4750 | 5045 | ||
4800 | 4695 | 2160 | 5290 | 5585 | |||
5200 | 5145 | 2310 | 5740 | 6035 | |||
6000 | 5895 | 2560 | 6490 | 6785 | |||
6500 | 6405 | 2730 | 7000 | 7295 | |||
Triplex "TVL" | 4200 | 4170 | 1400 | 1980 | 4750 | 5060 | |
4800 | 4710 | 1580 | 2160 | 5290 | 5600 | ||
5200 | 5160 | 1730 | 2310 | 5740 | 6050 | ||
6000 | 5910 | 1980 | 2560 | 6490 | 6800 | ||
6500 | 6420 | 2150 | 2730 | 7000 | 7310 | ||
AST comprende "a" (spazio di manovra) = 200 mm AST comprende "a" (spazio di manovra) = 200 mm (1) Duplex / Triplex (2) I valori di AST tra parentesi sono calcolati senza considerare il raggi "R" (3) Valori riferiti a "DV 3000" |
