ELE 10

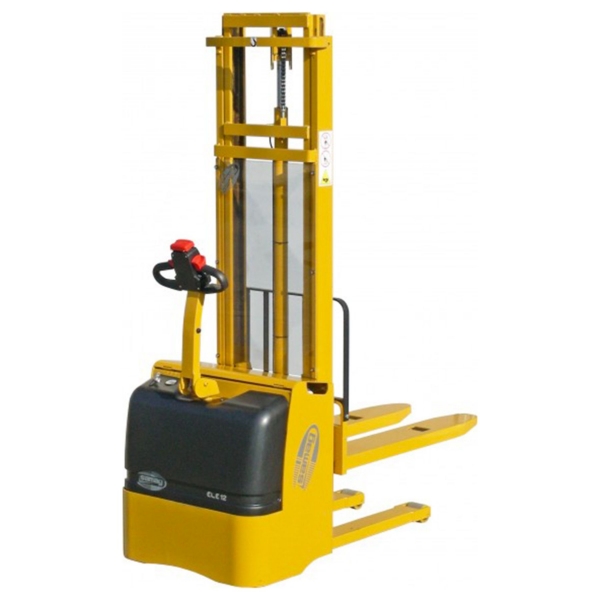

Samag ELE 10 stacker truck
All controls (traction, fork lifting and lowering) + slow function positioned on push-button control box
Swivel castors and drive wheel fitted inside the frame dimensions

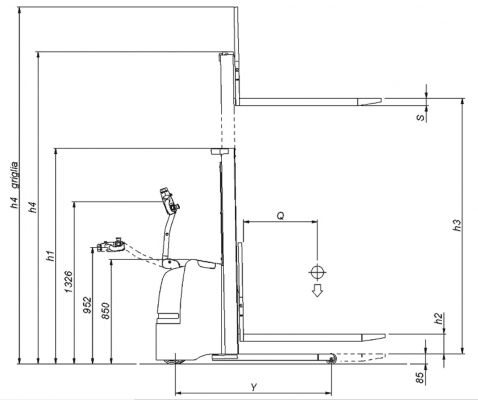

Samag ELE 10 stacker truck - drawing

Compact Stacker Truck: ALL WITHIN 80 cm

Stacker truck with reduced dimensions (B=790 mm) and good performance suitable for picking and storage operations.

STRENGTHS:

  • Central tiller arm for better driving ergonomics.
  • Swivel castors inside the frame dimensions
  • AC alternating current traction moto
  • Fork lifting and lowering with buttons

1KW TRACTION MOTOR AND AC ALTERNATING CURRENT ELECTRONICS ENSURING:

  • Greater power, maximum efficiency, with less stacker truck maintenance
  • Greater torque at low traction speed and essentially unchanged performance both with and without load
  • Constant speed even on ramps, both uphill and downhill
  • Electronic braking with energy recovery
  • Easy access to components requiring maintenance

✔ LOAD CAPACITY UP TO 1.000 KG

✔ SPECIAL DIMENSIONS UPON REQUEST

  • some optionals
  • Metallic/galvanised version
  • Lithium battery
  • Scale/Printer
  • Use in cold store
Type Stacker trucks Class Stacker trucks for non-intensive use
Load capacity (Kg) 1000 Lifting capacity (mm) 4000

In detail

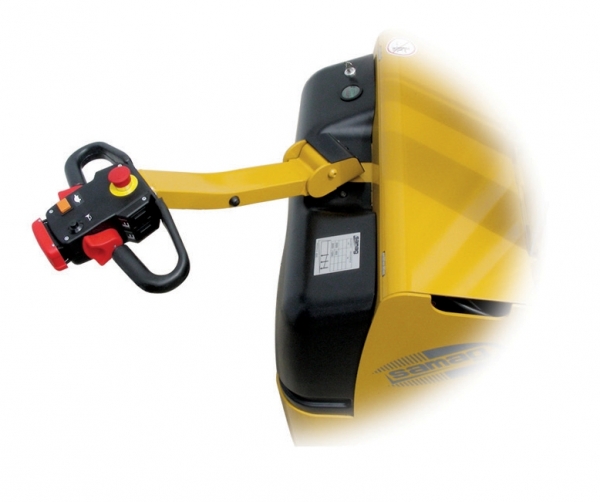

All controls of ELE 10 and ELE 12 stacker trucks (traction, fork lifting and lowering) + slow function are positioned on push-button control box.

This ensures maximum product flexibility and usability in normal operating conditions.

..................................

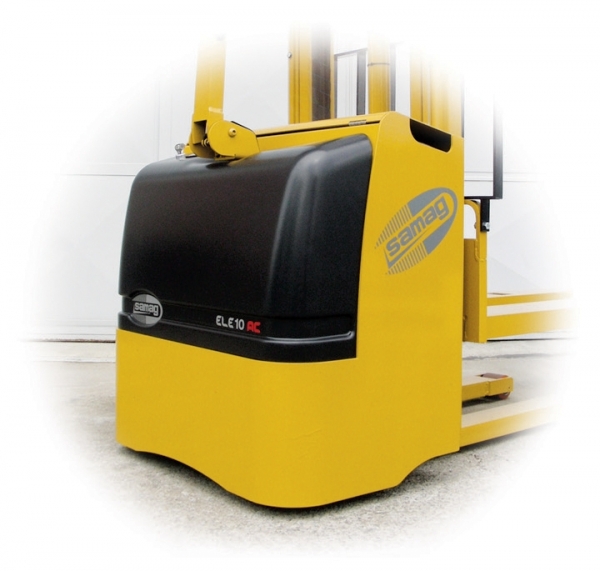

Swivel castors and drive wheel fitted inside the frame dimensions

Solutions designed to ensure safety and to achieve new benchmarks in terms of functional aesthetics.


  1.1 Manufacturer     SAMAG
 Caratteristiche 1.2 Manufacturer's type designation     ELE 10
1.3 Drive: electric (battery or mains), diesel, petrol, fuel gas     Electric
1.4 Operator type: hand, pedestrian, standing, seated, order-picker     pedestrian
1.5 Load capacity/rated load Q t 1
1.6 Load centre distance C mm 600
1.8 Load distance, centre of drive axle to fork x mm 710
1.9 Wheelbase Y mm 1266 / 1298 (1)
Weight 2.1 Service weight (battery included)   Kg 830 (2)
2.2 Axle loading, laden (front / rear)   Kg 671 / 1159
2.3 Axle loading, unladen (front / rear)   Kg 580 / 250
Wheels and frame 3.1 Tyres: solid rubber, superelastic, pneumatic, polyurethane     Solid rubber
3.2 Tyre size, front   mm 230x75 / 150x50
3.3 Tyre size, rear   mm 85x90
3.5 Wheels, number front rear (x = driven wheels)     1X + 1/2
3.6 Tread, front b10 mm 515
3.7 Tread, rear b11 mm 390
 Dimensioni 4.2 Height, mast lowered h1 mm (see table)
4.3 Free lift h2 mm (see table)
4.4 Lift h3 mm (see table)
4.5 Height, mast extended h4 mm (see table)
4.6 Initial lift h5 mm (see table)
4.8 Seat height / stand height h7 mm 135
4.9 Height of tiller in drive position (min. / max.) h14 mm 952 / 1326
4.15 Height of forks from ground h13 mm 85
4.19 Overall length l1 mm 1860-1890 (1)
4.20 Lenght of face of forks l2 mm 710 - 740 (1)
4.21 Overall width b1 mm 790
4.22 Fork dimensions slell mm 60x180x1150
4.24 Fork - carriage width b3 mm 660
4.25 External fork widths b5 mm 570
4.32 Ground clearance, centre of wheelbase m2 mm 30
4.34 Aisle width for pallets 800 x 1200 crossways Ast mm (2142) 2284 - (2174) 2316 (1)
4.35 Turning radius Wa mm 1452-1484 (1)
Performance 5.1 Travel speed (laden / unladen)   Km/h 6 / 6
5.2 Lift speed (laden / unladen)   m/s 0,13 / 0,22
5.3 Lowering speed (laden / unladen)   m/s 0,25 / 0,16
5.7 Gradeability (laden / unladen)   % 8 / 9
5.8 Max. gradeability (laden / unladen)   % 8 / 9
5.10 Service brake     Electric
Electric motor 6.1 Traction motor, power KB 60'   KW 1 AC
6.2 Lifting motor, performance 15% ED   KW 2,5
6.3 Battery DIN 43531/35/36 A, B, C,     NO
6.4 Tension / nominal capacity   V / Ah 24 / 160-230
6.5 Battery weight (± 5%)   Kg 151-194
Other data 8.1 Control type     Electric AC
8.4 Sound level at the driver's ear according to DIN 10 053   dB/(A) <70
Ast comprende "a" (spazio di manovra) = 200 mm ed è inteso per posto pallet vuoto
(1) Pedana verticale - Pedana orizzontale
(2) Triplex

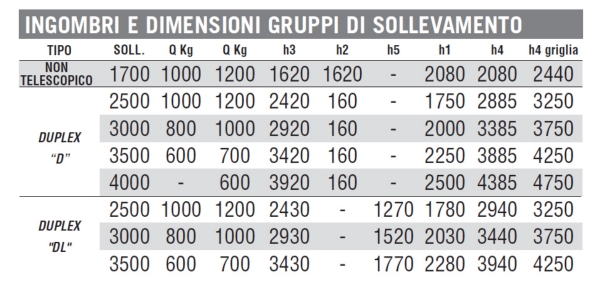

OVERALL DIMENSIONS OF LIFTING GROUPS

  Lift height h3 h2 h5 h1 h4 h4 grid

Non telescopic NT 1700 1620 1620 - 2080 2080 2440

Duplex "D" 2500 2420 160 - 1750 2885 3250
3000 2920 160 - 2000 3385 3750
3500 3420 160 - 2250 3885 4250
4000 3920 160 - 2500 4385 4750

Duplex "DL" 2500 2430 - 1270 1780 2940 3250
3000 2930 - 1520 2030 3440 3750
3500 3430 - 1770 2280 3940 4250
Ast comprende "a" (spazio di manovra) = 200 mm ed è inteso per posto pallet vuoto
(1) Pedana verticale - Pedana orizzontale
(2) Triplex
