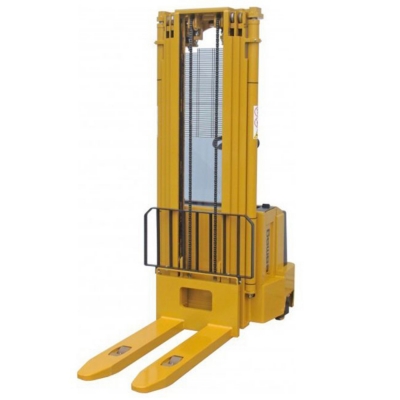

EL 16 P
High-performance stacker truck
Stacker truck with minimum overall dimensions and maximum efficiency
STRENGTHS:
- Masts with light design for total visibility
- AC alternating current traction motor ensuring greater power and maximum efficiency with less maintenance
- Fork lifting and lowering with proportional buttons
- The tiller arm of the truck and the spring loaded central drive wheel allow keeping a constant contact with the floor and reducing driver arm vibrations, as well as minimum steering effort even with full load.
✔ LOAD CAPACITY UP TO 1.600 KG
✔ SPECIAL DIMENSIONS UPON REQUEST
- some optionals
- Operator transport platform
- Electric steering
- Metallic/galvanised version
- Lithium battery
- Scale/Printer
- Use in cold store
Type | Stacker trucks | Class | Stacker trucks for normal use and heavy loads |
---|---|---|---|
Load capacity (Kg) | 1600 | Lifting capacity (mm) | 6000 |
In detail

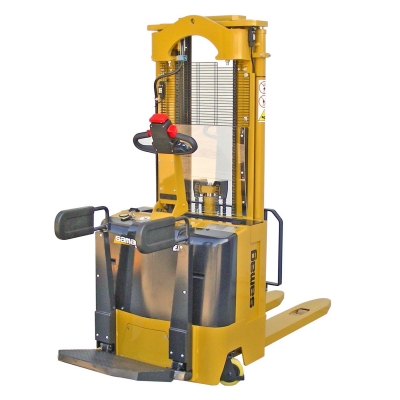

Version with operator platform
Models EL 13, EL 15 and EL 16 P are available in version with operator platform
..................................

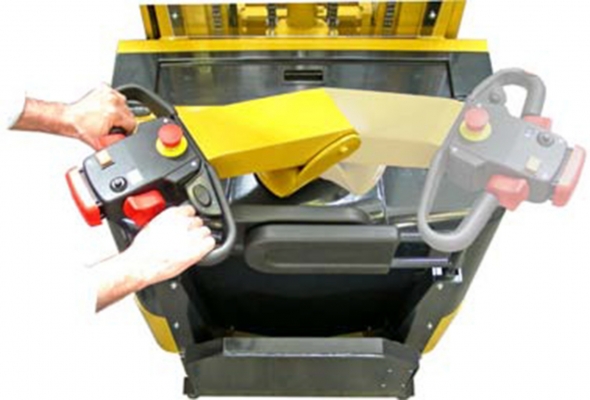

Version with electric steering system
Version with electric steering system sets new standards in terms of manoeuvrability and practicality
1.1 | Manufacturer | SAMAG | ||||
---|---|---|---|---|---|---|
Characteristics | 1.2 | Manufacturer's type designation | EL 16 P | EL 16 P P.O. | ||
1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Electric | ||||
1.4 | Operator type: hand, pedestrian, standing, seated, order-picker | pedestrian | standing | |||
1.5 | Load capacity/rated load | Q | t | 1,6 | ||
1.6 | Load centre distance | C | mm | 600 | ||
1.8 | Load distance, centre of drive axle to fork | x | mm | 714 | ||
1.9 | Wheelbase | Y | mm | 1327 / 1349 (2) | ||
Weight | 2.1 | Service weight (battery included) | Kg | 1230 | 1260 | |
2.2 | Axle loading, laden (front / rear) | Kg | 1060 / 1770 | 1200 / 1750 | ||
2.3 | Axle loading, unladen (front / rear) | Kg | 920 / 310 | 940 / 320 | ||
Wheels and frame | 3.1 | Tyres: solid rubber, superelastic, pneumatic, polyurethane | Solid rubber | Vulkollan | ||
3.2 | Tyre size, front | mm | 307x88 / 150x50 | |||
3.3 | Tyre size, rear | mm | 85x70 | |||
3.5 | Wheels, number front rear (x = driven wheels) | 1X + 2/4 | ||||
3.6 | Tread, front | b10 | mm | 754 | ||
3.7 | Tread, rear | b11 | mm | 380 | ||
Dimensions | 4.2 | Height, mast lowered | h1 | mm | (see table) | |
4.3 | Free lift | h2 | mm | (see table) | ||
4.4 | Lift | h3 | mm | (see table) | ||
4.5 | Height, mast extended | h4 | mm | (see table) | ||
4.6 | Initial lift | h5 | mm | (see table) | ||
4.8 | Seat height / stand height | h7 | mm | 135 | ||
4.9 | Height of tiller in drive position (min. / max.) | h14 | mm | 992 / 1304 | ||
4.15 | Height of forks from ground | h13 | mm | 85 | ||
4.19 | Overall length | l1 | mm | (see table) | ||
4.20 | Lenght of face of forks | l2 | mm | (see table) | ||
4.21 | Overall width | b1 | mm | 880 | ||
4.22 | Fork dimensions | slell | mm | 70x180x1150 | ||
4.24 | Fork - carriage width | b3 | mm | 650 | ||
4.25 | External fork widths | b5 | mm | 560 | ||
4.32 | Ground clearance, centre of wheelbase | m2 | mm | 30 | ||
4.34 | Aisle width for pallets 800 x 1200 crossways | Ast | mm | (see table) | ||
4.35 | Turning radius | Wa | mm | 1555-1577(2) | 1682-2041/1704-2063(1)(2) | |
Performance | 5.1 | Travel speed (laden / unladen) | Km/h | 6 / 6 | 6 / 6 - 8,5 / 8,5 | |
5.2 | Lift speed (laden / unladen) | m/s | 0,11 / 0,23 | |||
5.3 | Lowering speed (laden / unladen) | m/s | 0,34 / 0,24 | |||
5.7 | Gradeability (laden / unladen) | % | 7 / 9 | |||
5.8 | Max. gradeability (laden / unladen) | % | 7 / 15 | |||
5.10 | Service brake | Electric | ||||
Electric motor | 6.1 | Traction motor, power KB 60' | KW | 2 AC | ||
6.2 | Lifting motor, performance 15% ED | KW | 2,5 | |||
6.3 | Battery DIN 43531/35/36 A, B, C, | yes | ||||
6.4 | Tension / nominal capacity | V / Ah | 34 / 320 | |||
6.5 | Battery weight (± 5%) | Kg | 260 | |||
Other data | 8.1 | Control type | Electronic AC | |||
8.4 | Sound level at the driver's ear according to DIN 10 053 | dB/(A) | <70 | |||
Ast includes “a” (manoeuvring space) = 200 mm and means empty pallet space (1) Vertical platform - Horizontal platform (2) Triplex |

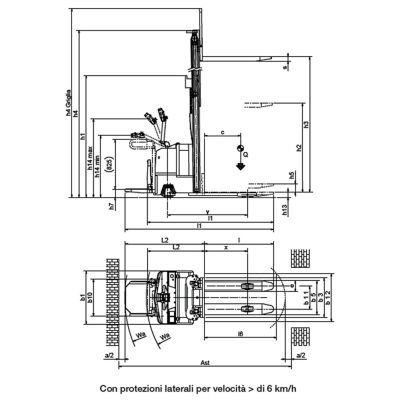

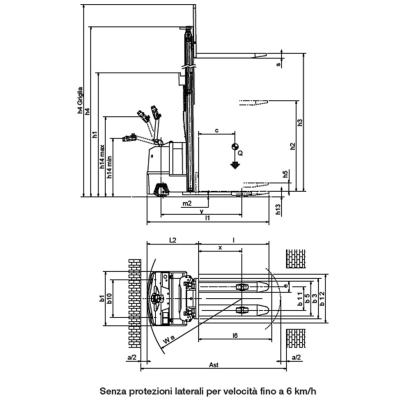

OVERALL DIMENSIONS OF LIFTING GROUPS |
|||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lift height | h3 | h5 | h2 | L1 | L1 P.O. (1) | L2 | L2 P.O. (1) | h1 | h4 | h4 grid | Ast | Ast P.O. (1) | |||
Non telescopic NT | 1700 | 1620 | 1620 | / | 1993 | 2096 | 2470 | 843 | 946 | 1320 | 2080 | 2100 | 2510 | 2386 | 2513-2872 |
Duplex "DV" | 2500 | 2430 | 140 | / | 1991 | / | 841 | / | 1780 | 2690 | 3320 | 2386 | / | ||
3000 | 2930 | 140 | / | 1991 | 2096 | 2470 | 841 | 946 | 1320 | 2030 | 3460 | 3820 | 2386 | 2513-2872 | |
3500 | 3430 | 140 | / | 1991 | 2096 | 2470 | 841 | 946 | 1320 | 2280 | 3960 | 4320 | 2386 | 2513-2872 | |
4000 | 3930 | 140 | / | 1991 | 2096 | 2470 | 841 | 946 | 1320 | 2530 | 4460 | 4820 | 2386 | 2513-2872 | |
4300 | 4270 | 140 | / | 1991 | 2096 | 2470 | 841 | 946 | 1320 | 2700 | 4800 | 5160 | 2386 | 2513-2872 | |
Duplex "DVL" | 2500 | 2445 | / | 1230 | 1991 | / | 841 | / | 1780 | 2995 | 3335 | 2386 | / | ||
3000 | 2945 | / | 1480 | 1991 | 2096 | 2470 | 841 | 946 | 1320 | 2030 | 3495 | 3835 | 2386 | 2513-2872 | |
3500 | 3445 | / | 1730 | 1991 | 2096 | 2470 | 841 | 946 | 1320 | 2280 | 3995 | 4335 | 2386 | 2513-2872 | |
4000 | 3945 | / | 1980 | 1991 | 2096 | 2470 | 841 | 946 | 1320 | 2530 | 4495 | 4835 | 2386 | 2513-2872 | |
Triplex "TV" | 4200 | 4155 | / | / | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 1980 | 4750 | 5045 | 2408 | 2535-2894 |
4500 | / | / | / | / | / | / | / | / | / | / | / | ||||
4800 | 4695 | / | / | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 2160 | 5290 | 5585 | 2408 | 2535-2894 | |
5200 | 5145 | / | / | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 2310 | 5740 | 6035 | 2408 | 2535-3894 | |
5600 | 5595 | / | / | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 2460 | 6190 | 6485 | 2408 | 2535-2894 | |
Triplex "TVL" | 4200 | 4170 | / | 1400 | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 1980 | 4750 | 5060 | 2408 | 2535-2894 |
4500 | / | / | / | / | / | / | / | / | / | / | / | ||||
4800 | 4710 | / | 1580 | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 2160 | 5290 | 5600 | 2408 | 2535-2894 | |
5200 | 5160 | / | 1730 | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 2310 | 5740 | 6050 | 2408 | 2535-2894 | |
5600 | 5610 | / | 1880 | 2013 | 2119 | 2493 | 863 | 969 | 1343 | 2460 | 6190 | 6500 | 2408 | 2535-2894 | |
Ast includes “a” (manoeuvring space) = 200 mm and means empty pallet space (1) Vertical platform - Horizontal platform (2) Triplex |
