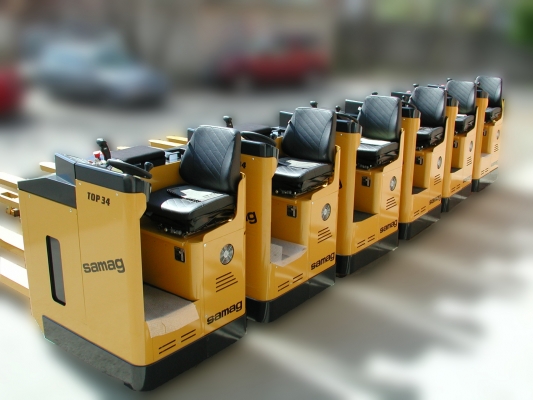

Samag TOP 34 pallet truck
Samag TOP 34 pallet truck

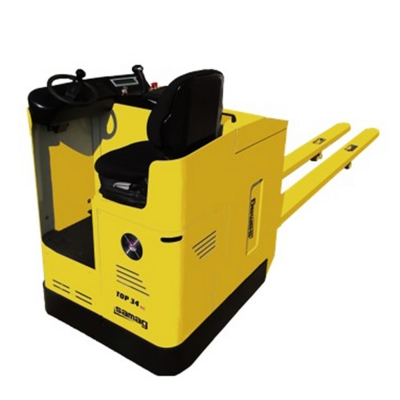

Samag TOP 34 pallet truck

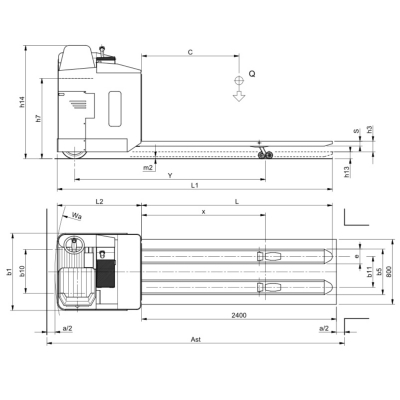

Samag TOP 34 pallet truck - Drawing

Ride-on electric pallet truck with seated operator for intensive use

INCREASINGLY STRONG

TOP 34 by Samag is the ride-on electric pallet truck with seated operator for intensive use, long distances and heavy loads.

STRENGTHS:

  • All operating controls placed on the dashboard
  • Joystick for lifting and lowering controls
  • Graphic display, with automatic self-diagnostics system, indicating truck functions and drive wheel position
  • Electronic AC traction and steering control, with CAN-BUS connection system
  • 360° steering angle (180° upon request) with proportional speed reduction
  • Forks 3600 mm long to handle 3 pallets



✔ LOAD CAPACITY UP TO 10.000 KG

✔ SPECIAL DIMENSIONS UPON REQUEST

  • some optionals
  • Operator transport platform
  • Metallic/galvanised version
  • Lithium battery
  • Scale/Printer
  • Use in cold store
Type Power pallet trucks Class Ride-on power pallet trucks for intensive use and high load capacity
Load capacity (Kg) 10000 Lifting capacity (mm) 130




1.1

Manufacturer





SAMAG

Characteristics

1.2 Manufacturer's type designation     TOP 34
1.3 Drive: electric (battery or mains), diesel, petrol, fuel gas     Battery
1.4 Operator type: hand, pedestrian, standing, seated, order-picker     seated
1.5 Load capacity/rated load Q t 3,3
1.6 Load centre distance C mm 600 /1200
1.8 Load distance, centre of drive axle to fork x mm 873 / 1526 (1)
1.9 Wheelbase con forche sollevate Y mm 1700 / 2352 (1)

Weight

2.1 Service weight (battery included)   Kg 1380 / 1540 (2)
2.2 Axle loading, laden (front / rear)   Kg 1700 / 3070 - 1757 / 3173 (3)
2.3 Axle loading, unladen (front / rear)   Kg 1080 / 300 - 1210 / 330 (4)

Wheels and frame

3.1 Tyres: solid rubber, superelastic, pneumatic, polyurethane     Vulkollan
3.2 Tyre size, front   mm 343 x 114 / 200 x 75
3.3 Tyre size, rear   mm 85x70
3.5 Wheels, number front rear (x = driven wheels)     1X + 2/4
3.6 Tread, front b10 mm 543
3.7 Tread, rear b11 mm 380 / 470
Dimensions 4.4 Lift h3 mm 130
4.8 Seat height / stand height h7 mm 990
4.9 Height of tiller in drive position (min. / max.) h14 mm 1400
4.15 Height of forks from ground h13 mm 85
4.19 Overall length l1 mm 2190 / 3390
4.20 Lenght of face of forks l2 mm 1040
4.21 Overall width b1/b2 mm 950
4.22 Fork dimensions slell mm 70/180/1150 - 70/180/2350
4.25 External fork widths b5 mm 560 / 650
4.32 Ground clearance, centre of wheelbase m2 mm 15
4.34 Aisle width for pallets 800 x 1200 crossways Ast mm 2480 / 3668
4.35 Turning radius Wa mm 1952 / 2594 (1)

Performance

5.1 Travel speed (laden / unladen)   Km/h 12 /12 - 12/14 (6)
5.2 Lift speed (laden / unladen)   m/s 0,02 / 0,07
5.3 Lowering speed (laden / unladen)   m/s 0,11 / 0,05
5.8 Max. gradeability (laden / unladen)   % 7 / 17
5.10 Service brake     Electric

Electric motor

6.1 Traction motor, power KB 60'   KW 5 AC
6.2 Lifting motor, performance 15% ED   KW 2
  Steering motor   KW 0,4 AC
6.3 Battery DIN 43531/35/36 A, B, C,     yes
6.4 Tension / nominal capacity   V / Ah 48 / 375 - 500 (5)
6.5 Battery weight (± 5%)   Kg 570 - 730
6.6 Energy consumption according To VDI cycle   KWh/h -
Other data 8.1 Type of command     Electric AC
8.4 Sound level at the driver's ear according to DIN 10 053   dB/(A) <70
Ast includes “a” (manoeuvring space) = 200 mm
(1) With forks in rest position, it increases by 92 mm
(2) With battery 375 Ah and forks 560x1150
(3) With operator aboard and lifted forks
(4) With lifted forks
(5) Quote "L2" - "Y" - "Wa" = + 110 mm
(6) The second value is obtained with Q = 2000Kg
