Ride-on electronic pallet truck with seated operator for very heavy loads

ROBUSTNESS AND HIGH PERFORMANCE

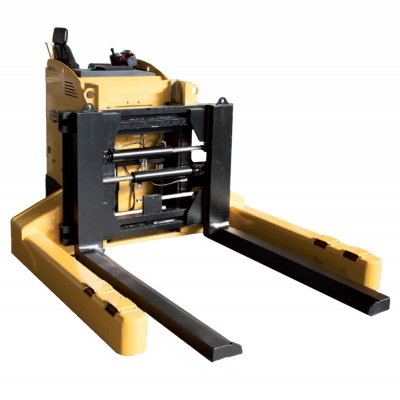

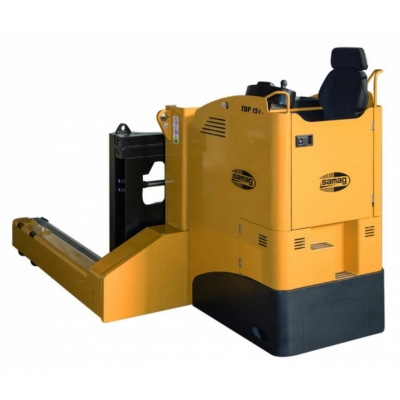

TOP 15 T by Samag is the ride-on electronic pallet truck with seated operator for handling of very heavy loads.

STRENGTHS:

  • Articulated reel holder frame with respect to the frame to ensure a constant grip to the floor of the 4 resting points
  • Double alternating current 48 V traction motor, including electric traction steering system with CAN-BUS connection
  • Higher position of operator cabin for better visibility
  • Fork positioner for handling of different diameters
  • Fork anti-opening system to prevent load falling
  • Graphic display, with automatic self-diagnostics system, indicating truck functions and drive wheel position
  • Automatic slowdown when cornering
  • All operating controls placed on the dashboard for lifting and lowering controls
  • Customised fork dimensions depending on the reels to be transported



✔ LOAD CAPACITY UP TO 15.000 KG

✔ SPECIAL DIMENSIONS UPON REQUEST



  • some optionals
  • Operator transport platform
  • Metallic/galvanised version
  • Lithium battery
  • Scale/Printer
  • Use in cold store
Type Power pallet trucks Class Ride-on power pallet trucks for intensive use and high load capacity
Load capacity (Kg) 15000 Lifting capacity (mm) 300
