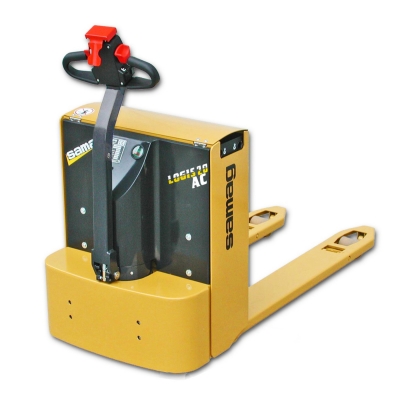

LOGIS 20, small-sized electric pallet truck
LOGIS 20, small-sized electric pallet truck
LOGIS 20, small-sized electric pallet truck
LOGIS 20, small-sized electric pallet truck in working condition

Small-sized electric pallet truck

IDEAL FOR HANDLING OF LOADS INSIDE VEHICLES OR IN WAREHOUSES

LOGIS 20 pallet truck by Samag features very small overall dimensions (L2=576mm) and an innovative design. The careful choice of quality components gives the product an excellent robustness.

LOGIS 20 pallet truck by Samag uses AC technology, i.e.:

  • electronics with IP54 protection
  • brushless traction motor (minimal maintenance)
  • greater torque at low traction speed and essentially unchanged performance both with and without load
  • once set on the special variator, the speed remains constant in every situation, even on ramp both upwards and downwards, optimising the truck control

All winning elements that characterise the LOGIS series of forklift trucks, a valid and effective solution for pallet handling.

✔ LOAD CAPACITY UP TO 2.000 KG

✔ VERY SMALL OVERALL DIMENSIONS

✔ SPECIAL DIMENSIONS UPON REQUEST



  • some optionals
  • Operator transport platform
  • Metallic/galvanised version
  • Lithium battery
  • Scale/Printer
  • Use in cold store
Type Power pallet trucks Class Power pallet trucks for non-intensive use
Load capacity (Kg) 2000 Lifting capacity (mm) 130

  1.1 Manufacturer     SAMAG
 Caratteristiche 1.2 Manufacturer's type designation     LOGIS 20
1.3 Drive: electric (battery or mains), diesel, petrol, fuel gas     Electric
1.4 Operator type: hand, pedestrian, standing, seated, order-picker     pedestrian
1.5 Load capacity/rated load Q t 2
1.6 Load centre distance C mm 600
1.8 Load distance, centre of drive axle to fork x mm 900 (1)
1.9 Wheelbase Y mm 1326 (1)
Weight 2.1 Service weight (battery included)   Kg 570
2.2 Axle loading, laden (front / rear)   Kg 892 / 1678
2.3 Axle loading, unladen (front / rear)   Kg 440 / 130
Wheels and frame 3.1 Tyres: solid rubber, superelastic, pneumatic, polyurethane     Polyurethane
3.2 Tyre size, front   mm 230 x 75 / 100 x 40
3.3 Tyre size, rear   mm 85 x 90
3.5 Wheels, number front rear (x = driven wheels)     1x / 2-4
3.6 Tread, front b10 mm 505
3.7 Tread, rear b11 mm 372
 Dimensioni 4.2 Height, mast lowered h1 mm ---
4.3 Free lift h2 mm ---
4.4 Lift h3 mm 120
4.5 Height, mast extended h4 mm ---
4.6 Initial lift h5 mm ---
4.8 Seat height / stand height h7 mm ---
4.9 Height of tiller in drive position (min. / max.) h14 mm 1145
4.15 Height of forks from ground h13 mm 85
4.19 Overall length l1 mm 1726
4.20 Lenght of face of forks l2 mm 576
4.21 Overall width b1 mm 700
4.22 Fork dimensions slell mm 60 x 170 x 1150
4.24 Fork - carriage width b3 mm ---
4.25 External fork widths b5 mm 545 / 650
4.32 Ground clearance, centre of wheelbase m2 mm 40
4.34 Aisle width for pallets 800 x 1200 crossways Ast mm 2033
4.35 Turning radius Wa mm 1533
Performance 5.1 Travel speed (laden / unladen)   Km/h 6 / 6
5.2 Lift speed (laden / unladen)   m/s 0,04 / 0,05
5.3 Lowering speed (laden / unladen)   m/s 0,06 / 0,06
5.7 Gradeability (laden / unladen)   % ---
5.8 Max. gradeability (laden / unladen)   % 8 / 20
5.10 Service brake     Electric
Electric motor 6.1 Traction motor, power KB 60'   KW 1 AC
6.2 Lifting motor, performance 15% ED   KW 2,2
6.3 Battery DIN 43531/35/36 A, B, C,
6.4 Tension / nominal capacity   V / Ah 24 / 160 - 230
6.5 Battery weight (± 5%)   Kg 151 / 195
Other data 8.1 Control type     Electric AC
8.4 Sound level at the driver's ear according to DIN 10 053   dB/(A) <70
Ast includes “a” (manoeuvring space) = 200 mm and means empty pallet space
(1) With stabilisers raises, decreases by 75 mm
